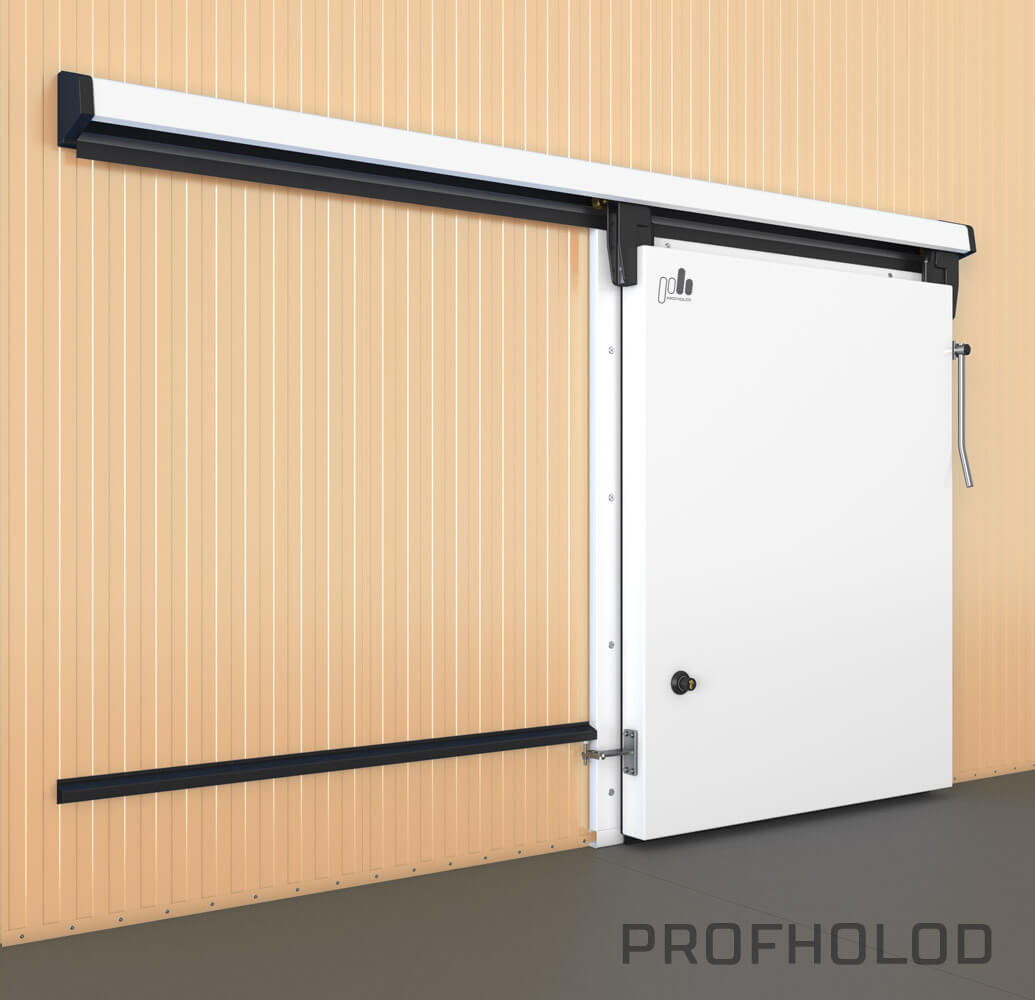

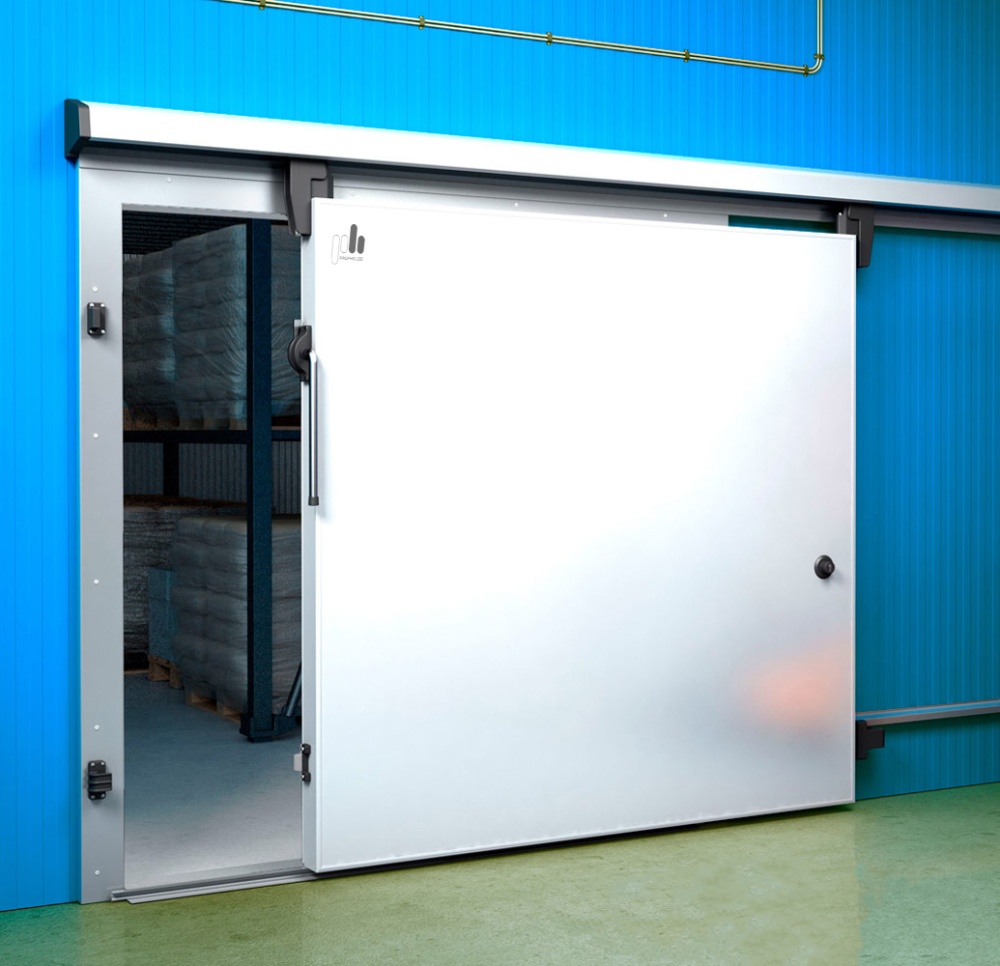

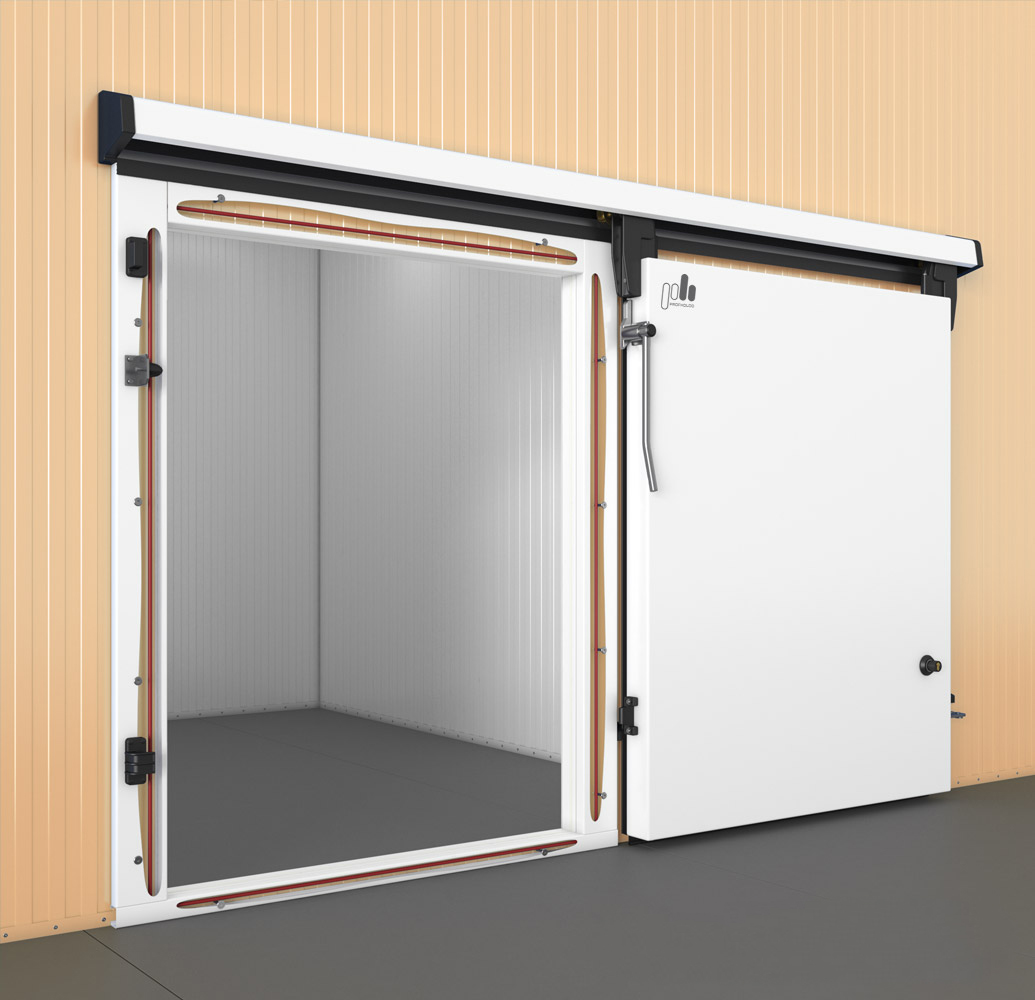

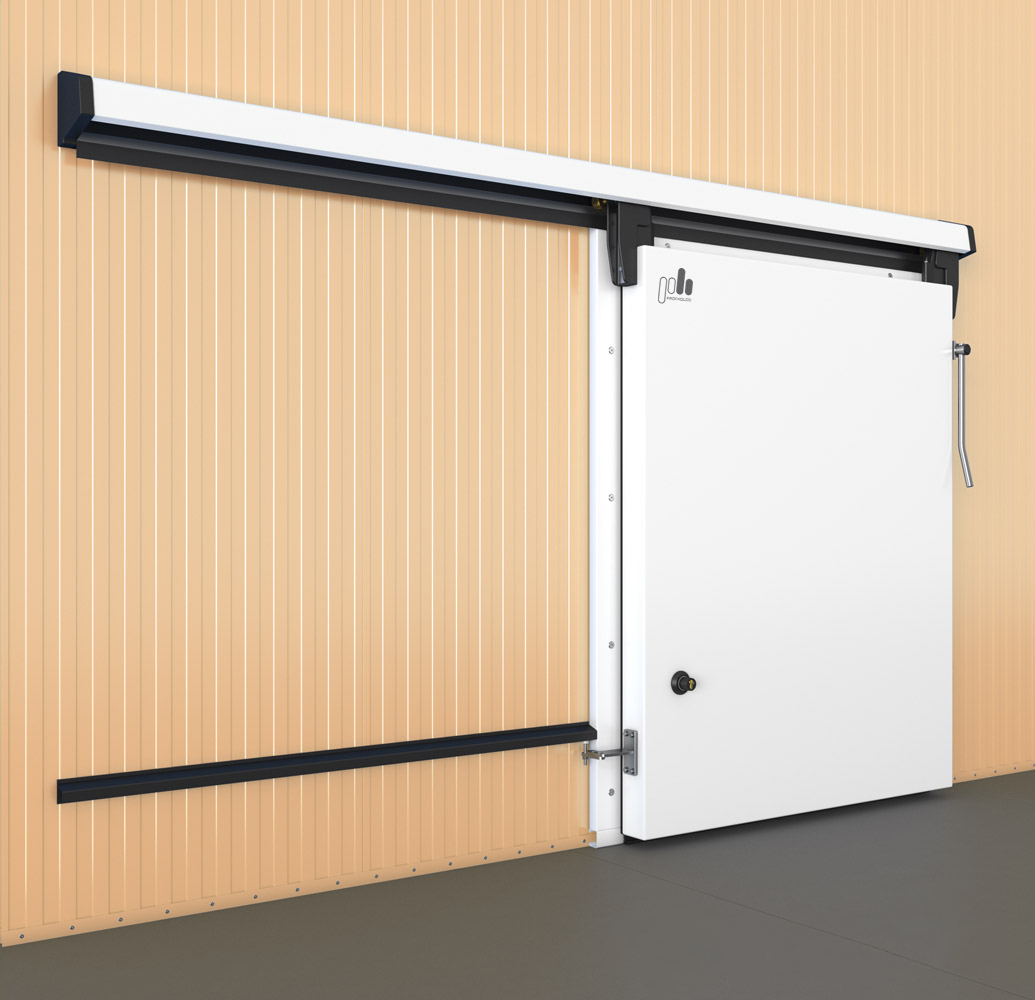

Sliding door

Откатные холодильные двери

Door code:

  • SD – Sliding Door, standard
  • SD H – Heavy sliding door

Characteristics:
  • Width, mm: 80, 100, 120, 150
  • Core: PUR
  • Opening height, mm: up to 3000
  • Opening width, mm: up to 3000

Basic Information

Sliding Refrigeration doors are designed for use in rooms that require maintaining a set temperature: medium and low temperature cold rooms, warehouses, logistics centers. PH Insulation’s Sliding Doors are easy to operate and will save your space.

Options

With or without threshold

With or without electric drive

For medium or low temperature cold rooms

Door Sizes

Door thickness, mm: 80, 100, 120
Opening height, mm: up to 3000
Opening width, mm: up to 3000

Custom door dimensions

Door type (XX –thickness, mm) Opening
width, mm
Opening
height, mm
Door
width, mm
Door height, mm
With threshold Without threshold
SD 800 1800 ХХ 800 1800 900 1900 1815
SD 800 2000 ХХ 800 2000 900 2100 2015
SD 800 2200 ХХ 800 2200 900 2300 2215
SD 800 2400 ХХ 800 2400 900 2500 2415
SD 800 2600 ХХ 800 2600 900 2700 2615
SD 800 2800 ХХ 800 2800 900 2900 2815
SD 800 3000 ХХ 800 3000 900 3100 3015
SD 1000 1800 ХХ 1000 1800 1100 1900 1815
SD 1000 2000 ХХ 1000 2000 1100 2100 2015
SD 1000 2200 ХХ 1000 2200 1100 2300 2215
SD 1000 2400 ХХ 1000 2400 1100 2500 2415
SD 1000 2600 ХХ 1000 2600 1100 2700 2615
SD 1000 2800 ХХ 1000 2800 1100 2900 2815
SD 1000 3000 ХХ 1000 3000 1100 3100 3015
SD 1200 1800 ХХ 1200 1800 1300 1900 1815
SD 1200 2000 ХХ 1200 2000 1300 2100 2015
SD 1200 2200 ХХ 1200 2200 1300 2300 2215
SD 1200 2400 ХХ 1200 2400 1300 2500 2415
SD 1200 2600 ХХ 1200 2600 1300 2700 2615
SD 1200 2800 ХХ 1200 2800 1300 2900 2815
SD 1200 3000 ХХ 1200 3000 1300 3100 3015
SD 1400 1800 ХХ 1400 1800 1500 1900 1815
SD 1400 2000 ХХ 1400 2000 1500 2100 2015
SD 1400 2200 ХХ 1400 2200 1500 2300 2215
SD 1400 2400 ХХ 1400 2400 1500 2500 2415
SD 1400 2600 ХХ 1400 2600 1500 2700 2615
SD 1400 2800 ХХ 1400 2800 1500 2900 2815
SD 1400 3000 ХХ 1400 3000 1500 3100 3015
SD 1600 1800 ХХ 1600 1800 1700 1900 1815
SD 1600 2000 ХХ 1600 2000 1700 2100 2015
SD 1600 2200 ХХ 1600 2200 1700 2300 2215
SD 1600 2400 ХХ 1600 2400 1700 2500 2415
SD 1600 2600 ХХ 1600 2600 1700 2700 2615
SD 1600 2800 ХХ 1600 2800 1700 2900 2815
SD 1600 3000 ХХ 1600 3000 1700 3100 3015
SD 1800 1800 ХХ 1800 1800 1900 1900 1815
SD 1800 2000 ХХ 1800 2000 1900 2100 2015
SD 1800 2200 ХХ 1800 2200 1900 2300 2215
SD 1800 2400 ХХ 1800 2400 1900 2500 2415
SD 1800 2600 ХХ 1800 2600 1900 2700 2615
SD 1800 2800 ХХ 1800 2800 1900 2900 2815
SD 1800 3000 ХХ 1800 3000 1900 3100 3015
SD 2000 1800 ХХ 2000 1800 2100 1900 1815
SD 2000 2000 ХХ 2000 2000 2100 2100 2015
SD 2000 2200 ХХ 2000 2200 2100 2300 2215
SD 2000 2400 ХХ 2000 2400 2100 2500 2415
SD 2000 2600 ХХ 2000 2600 2100 2700 2615
SD 2000 2800 ХХ 2000 2800 2100 2900 2815
SD 2000 3000 ХХ 2000 3000 2100 3100 3015
SD 2200 1800 ХХ 2200 1800 2300 1900 1815
SD 2200 2000 ХХ 2200 2000 2300 2100 2015
SD 2200 2200 ХХ 2200 2200 2300 2300 2215
SD 2200 2400 ХХ 2200 2400 2300 2500 2415
SD 2200 2600 ХХ 2200 2600 2300 2700 2615
SD 2200 2800 ХХ 2200 2800 2300 2900 2815
SD 2200 3000 ХХ 2200 3000 2300 3100 3015
SD 2400 1800 ХХ 2400 1800 2500 1900 1815
SD 2400 2000 ХХ 2400 2000 2500 2100 2015
SD 2400 2200 ХХ 2400 2200 2500 2300 2215
SD 2400 2400 ХХ 2400 2400 2500 2500 2415
SD 2400 2600 ХХ 2400 2600 2500 2700 2615
SD 2400 2800 ХХ 2400 2800 2500 2900 2815
SD 2400 3000 ХХ 2400 3000 2500 3100 3015
SD 2400 1800 ХХ 2400 1800 2500 1900 1815
SD 2400 2000 ХХ 2400 2000 2500 2100 2015
SD 2400 2200 ХХ 2400 2200 2500 2300 2215
SD 2400 2400 ХХ 2400 2400 2500 2500 2415
SD 2400 2600 ХХ 2400 2600 2500 2700 2615
SD 2400 2800 ХХ 2400 2800 2500 2900 2815
SD 2400 3000 ХХ 2400 3000 2500 3100 3015
SD 2600 1800 ХХ 2600 1800 2700 1900 1815
SD 2600 2000 ХХ 2600 2000 2700 2100 2015
SD 2600 2200 ХХ 2600 2200 2700 2300 2215
SD 2600 2400 ХХ 2600 2400 2700 2500 2415
SD 2600 2600 ХХ 2600 2600 2700 2700 2615
SD 2600 2800 ХХ 2600 2800 2700 2900 2815
SD 2600 3000 ХХ 2600 3000 2700 3100 3015
SD 2800 1800 ХХ 2800 1800 2900 1900 1815
SD 2800 2000 ХХ 2800 2000 2900 2100 2015
SD 2800 2200 ХХ 2800 2200 2900 2300 2215
SD 2800 2400 ХХ 2800 2400 2900 2500 2415
SD 2800 2600 ХХ 2800 2600 2900 2700 2615
SD 2800 2800 ХХ 2800 2800 2900 2900 2815
SD 2800 3000 ХХ 2800 3000 2900 3100 3015
SD 3000 1800 ХХ 3000 1800 3100 1900 1815
SD 3000 2000 ХХ 3000 2000 3100 2100 2015
SD 3000 2200 ХХ 3000 2200 3100 2300 2215
SD 3000 2400 ХХ 3000 2400 3100 2500 2415
SD 3000 2600 ХХ 3000 2600 3100 2700 2615
SD 3000 2800 ХХ 3000 2800 3100 2900 2815
SD 3000 3000 ХХ 3000 3000 3100 3100 3015
View full table

Door Construction

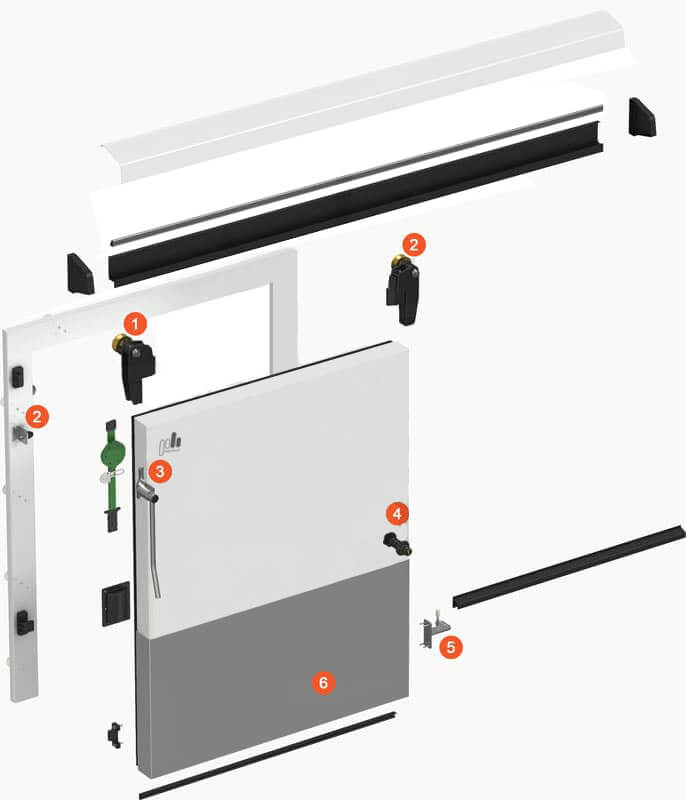

  1. Roller 90 mm (brass)
  2. Heavy duty door stopper
  3. Fermod 3530 External door handle
  4. RAHRBACH telescopic lock for sliding doors
  5. BOX A Q08-3 lower roller, steel
  6. AISI 304 stainless steel sheet

Door leaf

The door leaf, including the ends of the panel, is made of 0.5 mm thick steel sheet, which (unlike end plastic profiles) allows to withstand mechanical shocks and loads. Rigid polyurethane foam with a density of up to 50 kg/m3 is used as a core.

Metal ends give the doors additional resistance to side impacts that are unavoidable during operation.

Depending on the degree of aggressiveness of the working environment of your project, PH Insulation will produce sliding door leafs with the following types of metal:

  • Galvanized steel, painted with white polymer paint, RAL 9003 or you can order the door leaf in any color of your choice according to the RAL catalogue
  • Galvanized steel, unpainted
  • Aisi 430 all-purpose stainless steel
  • Aisi 304 food grade stainless steel
  • Food Safe laminated steel

The doors are wrapped in 50 μm thick film to prevent damage when transporting or mounting, the film is easily removed after the installation.

Gaskets

Sliding doors are equipped with tape-like sealing gaskets made of EPDM rubber with a layer of sticky reinforced adhesive protected by tread paper. Gaskets in sliding doors are used at the bottom of the door leaf in the non-threshold doors and along the perimeter of the leaf in all options.

Door frame

Your door frame will be produced of 2 mm thick steel sheet and painted with the color of your choice or standard white RAL 9003. PH Insulation doors and frames are fully customizable with a choice of colors and steel: stainless steel frame AISI 304 for food facilities or AISI 430 – for non-food ones.

Door frame is mounted to the outer wall of the doorway with the mounting kit that is included in the door package.

Door frame size depends on door opening dimensions:

  • Door frame width = opening width + 300 mm
  • Door frame height = opening height + 170 mm (non-threshold option)
  • Door frame height = opening height + 150 mm + threshold height (threshold option).

Door hardware

PH Insulation Sliding Doors are equipped with

  • Heavy-duty metal PH Insulation hardware for sliding doors

  • Spanish KIDE and Coldtech door hardware

  • French Fermod door hardware

  • German Rahrbach door hardware

The service life of heavy-duty metal PH Insulation hardware is increased by 1.5 times thanks to upgraded elements made by PH Insulation.The guide profiles are made of anodized aluminum and withstand loads up to 200 kg. PH Insulation SD system of side guides is located on the wall, on a sandwich panel, without fixing to the floor. Thanks to such design, foreign objects do not fall into the guides which means increased reliability and durability of the mechanisms. The rollers of the brackets and the sets of stops and grips are made of oil-filled polyamide, which ensures constant self-lubrication of the mechanism.

Single leaf sliding doors are equipped with Kide or Coldtech door hardware by default: Box A, Box B or Box C, Fox F, Box E, sliding door lock

Heavy-duty single leaf sliding doors are equipped with PH Insulation door hardware, Kide and Fermod door hardware: Box A, Box B or Box C, Box D, Box H (if the door leaf is thicker than 150 mm), Fermod 3350 internal handle, heavy duty door stopper and Kide sliding door lock.

Request a Quote

You may choose a color for your door according to RAL catalogue

1014 Ivory 1015 Light ivory
1018 Zinc yellow 3003 Ruby red
3005 Wine red 3009 Oxide red
3011 Brown red 5005 Signal blue
6002 Leaf green 6005 Moss green
7004 Signal grey 8017 Chocolate brown
9002 Grey white 9003 Signal white
9006 White aluminium 9010 Pure white

Sliding Door Options

At your request PH Insulation can add to Hinged Double Leaf Refrigeration Doors the following options:

Doorway framing

Doorways in sandwich panels are framed by a special U-shaped element, which is made of two metal corners and a docking plastic profile

Doorway framing in the sandwich panel

Heated threshold

It is recommended to install a heated door threshold in non-threshold low-temperature sliding doors to prevent the lower part of the seal from freezing to the door frame. A 40W heating cable is installed in the threshold.

Reinforced heated threshold for non-threshold doors

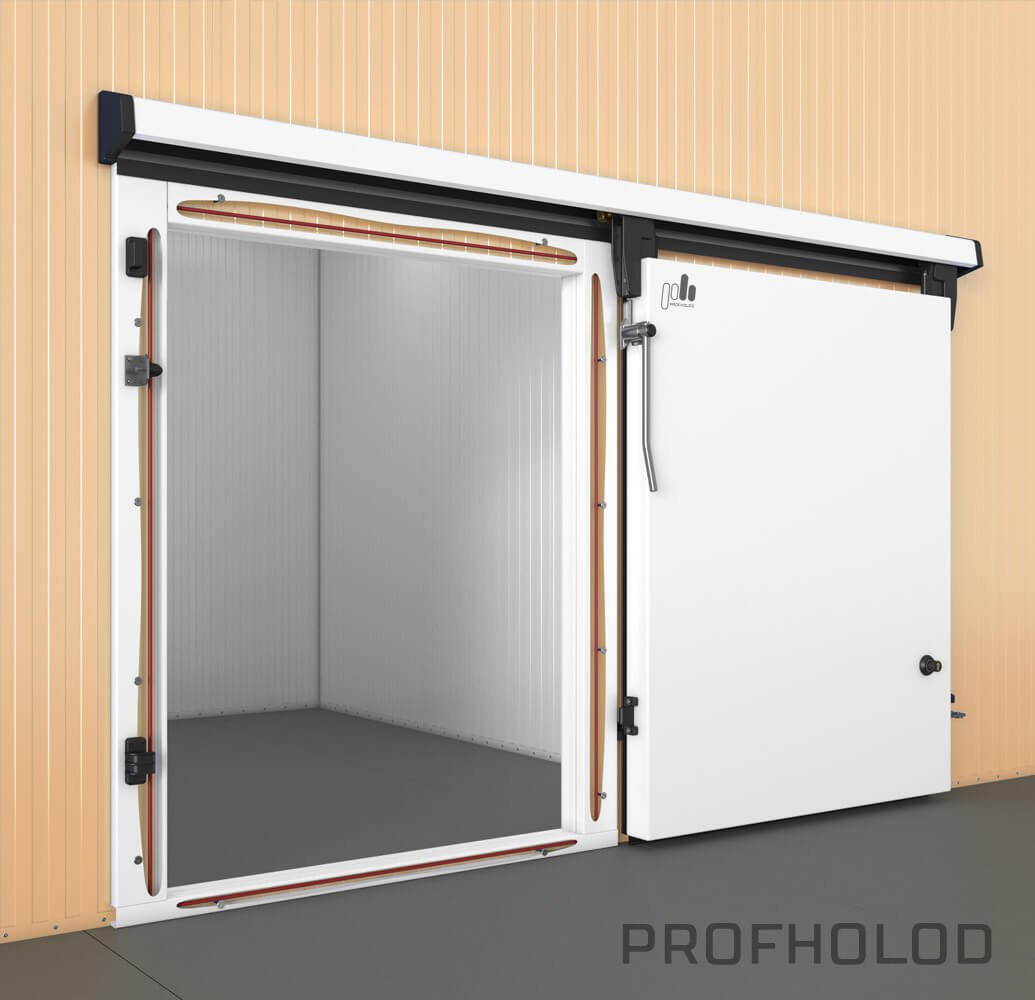

Metal frame heating cable for low temperature cold rooms with temperature conditions below 0°C.

40W per heating cable is installed along the door frame perimeter in order to avoid freezing of the sealer to the door frame

heating cable

20W heating cable for door sealer for low temperature and shock-freezing cold rooms with temperature conditions below -25°C

Heating cable is installed into the inner contour of the door leaf seal. This option suits for shock-freezing chambers.

Mounting kit for fixing the door frame to sandwich panel with opening

Erickson nut with stud

Mounting kit for fixing the door frame to a brick wall

Door frame and door leaf made from stainless steel

You may choose AISI 304 stainless steel for food facilities of AISI 430 stainless steel for non-food ones.

Viewing window in the door leaf

There are two options of two-chamber plastic windows, single-gazed: 400x400 mm and 400x600 mm.

Setting the door frame for a monorail

Monorail door frames are installed on sandwich panels or brick walls. Opening width and height for the monorail depend on the dimensions of the products that will move along the monorail. In the basic configuration, the doors with an opening in the frame for the monorail are also equipped with a PVC curtain according to the size of the opening.

Door leaf bumpers

PH Insulation offers several types of materials for a single leaf door bumper

  • 2 mm thick AISI 304 stainless steel
  • 2 mm thick AISI 430 stainless steel
  • 4 mm thick flat HDP plastic
  • 1.5 mm thick checkered plate
  • Bumper height is 50 cm as a standard

Door ramp

You may choose fixed or overhead door ramp. Fixed ramp is installed to the doors with a non-threshold frame. The overhead ramp is equipped with additional handles for easy movement. Non-threshold low-temperature doors are equipped with a 40W heating cable which is mounted into the ramp in order to prevent the lower seal from freezing to the ramp.

  • Ramp custom depth, mm: 1000
  • Ramp width, mm: from 800 to 2500
  • Ramp height, mm: from 50 to 200
  • Ramp base: 2 mm thick painted steel
  • Ramp top: 1.5 mm thick checkered plate
  • Ramp load: up to 300 kg (661 lb)

Overhead ramp with handles for carrying

Heated ramp for low-temperature door without threshold

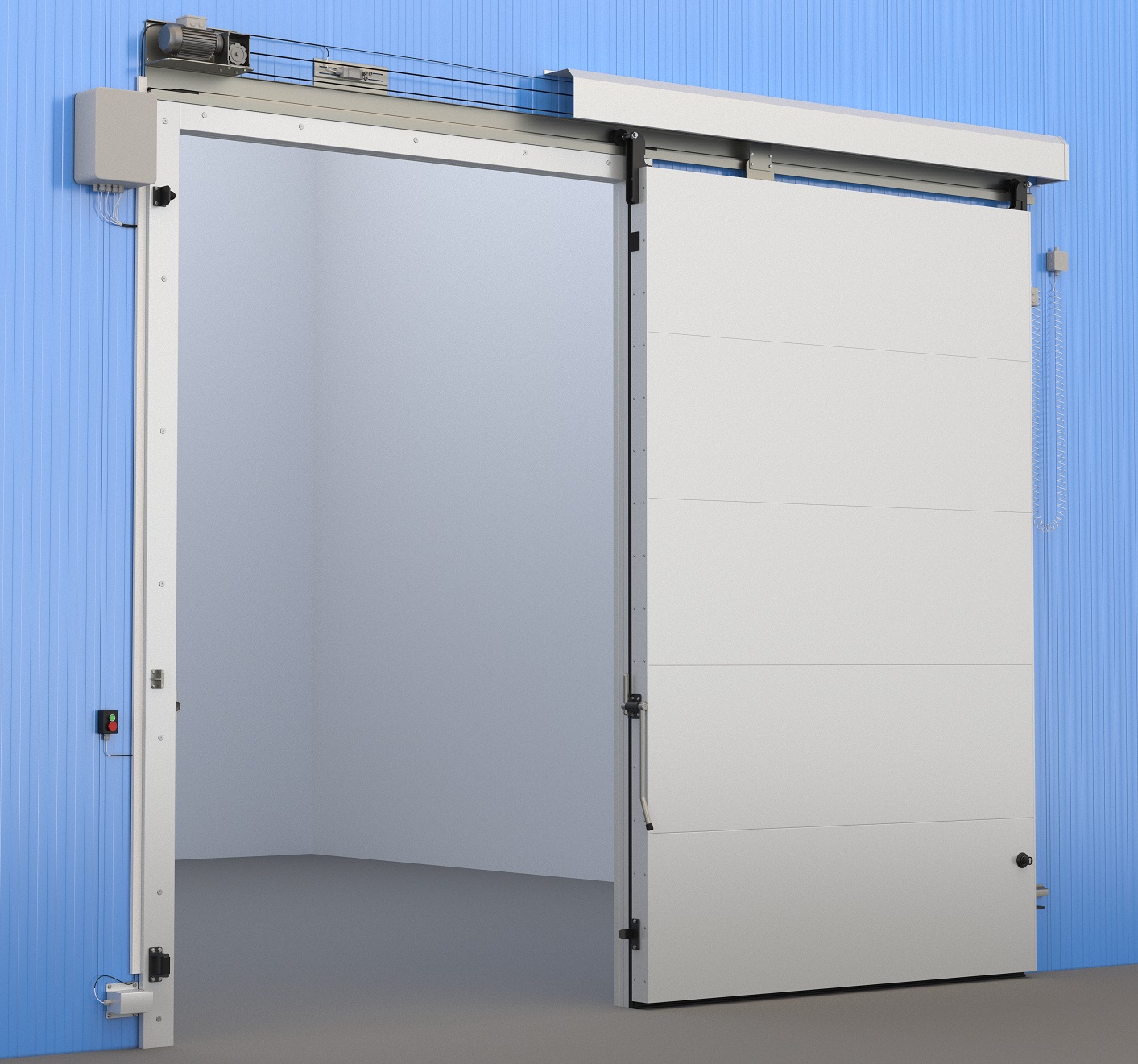

PH Insulation Automatic Drive

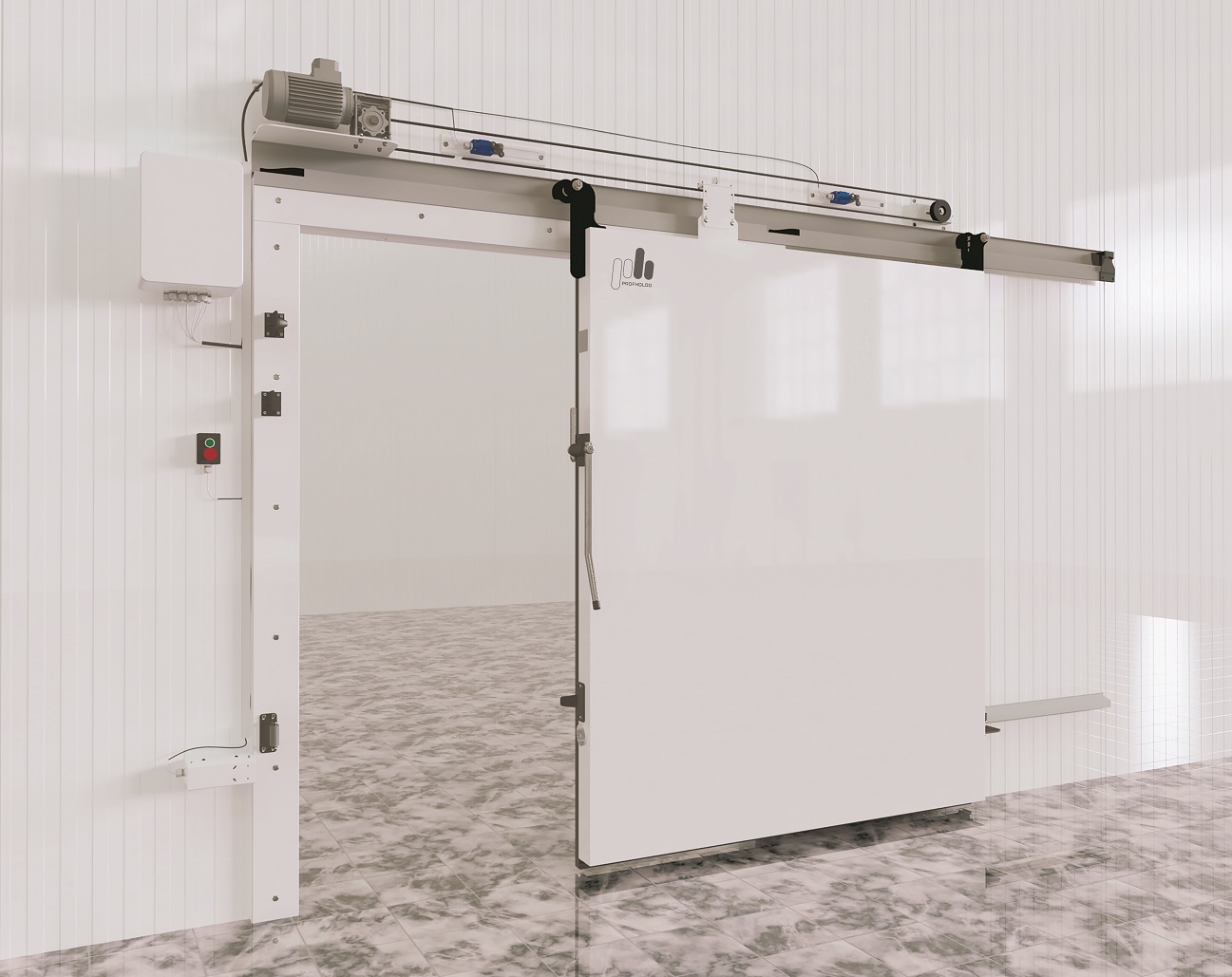

PH Insulation Automatic Drive reduces the losses of cold, simplifies access to the room by opening and closing automatization and has a very attractive price. The drive is developed considering the peculiarities of operation of cold storage facilities in Russia and passed 150,000 opening and closing cycles in the test mode.

PH Insulation Automatic Drive

For most popular door opening dimensions

The automatic drive is installed on doorways up to 3 meters wide and up to 5 meters high on sliding doors with their PH Insulation reinforced hardware, Kide Spanish hardware or MTH Italian hardware.

Full drive pre-customization

To simplify the drive installation, the mechanism is delivered fully configured and tested in the factory at the PH Insulation’s stand.

Safe operation

The drive is equipped with safety sensors and is reliably protected from overloads: when foreign elements get on the trajectory of the door, the door stops automatically. The safety system provides emergency opening: the door control buttons are duplicated inside the refrigerator compartment, and when the power supply is turned off, the door can be opened and closed manually.

Easy to operate

The drive can be operated using the open/close button, the cord, or the remote control. With the automatic closing timer, the drive can be set to automatically close the door – you may choose any time frame from 1 second after opening. You may also adjust the speed of the door opening and closing, the acceleration and braking time, and the force at the beginning of the door movement.

The basic configuration of the PH Insulation automatic drive includes:

  • Drive station: electric motor with a worm gear, on the output shaft of which a toothed pulley is installed, a mounting bracket
  • Gear pulley tensioning station with mounting bracket
  • Toothed belt with mounting bracket
  • Electric box with automation elements
  • Door position limit switches with mounting elements
  • 2 fixed push-button posts with start and emergency stop buttons
  • Connection cables

Options:

  • Remote cordless door pull-back switch
  • Electric lock
  • Timer
  • Photoelectric sensors
  • Optical sensors
  • Remote control
  • Protective cover

We provide a 1-year warranty for our automatic drive

Dervet Automatic Drive (Italy)

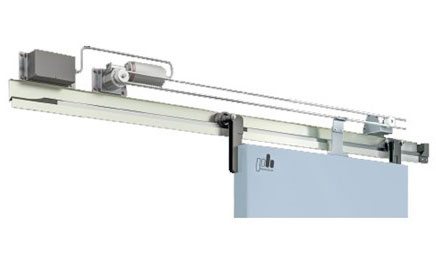

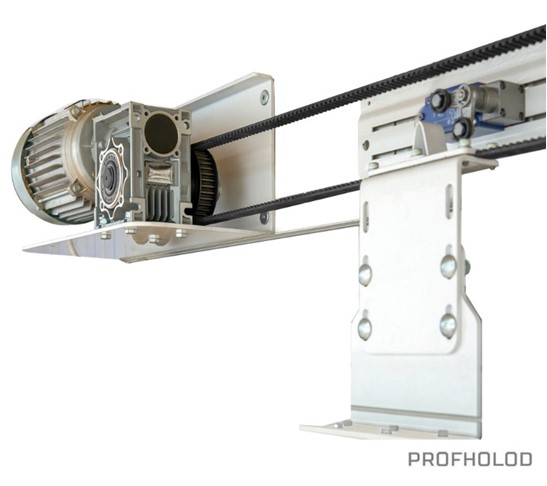

Dervet automatic drive

Characteristics:

  • Operating temperature range -25°C to +55°C
  • Door leaf weight: up to 200 kg (440 lb)
  • Degree of protection IP65: full dust protection, water protection

Options:

  • Remote control
  • Closed-circuit sensor on photocells
  • Backup battery for powering the drive in case of power outage
  • Cord switch

Fermod Kit 5010 Automatic Drive

Designed to automate the closing and opening of sliding refrigeration doors. It is used for sliding doors with a Fermatic 2157, Fermatic 3536-3538 guide system. Manufactured by Fermod (France).

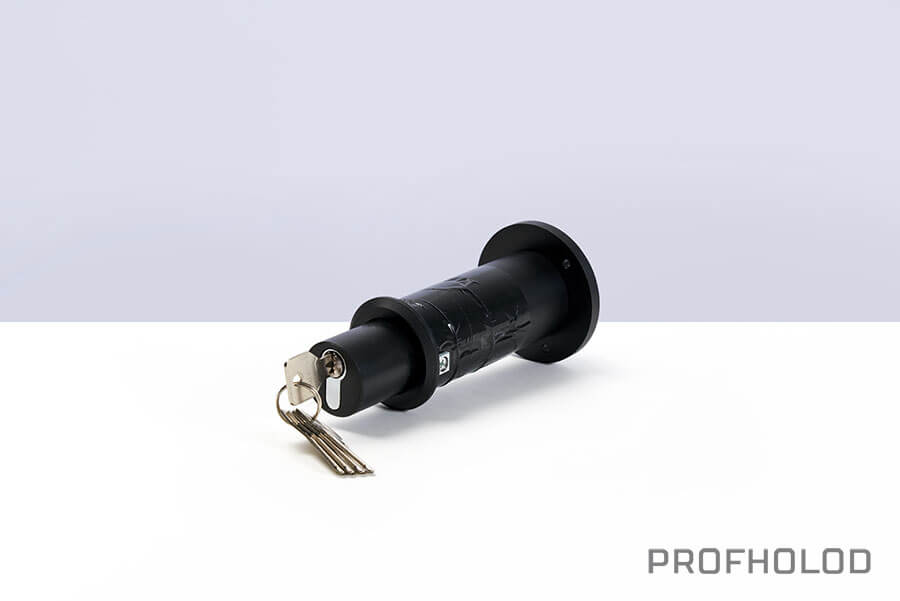

PH Insulation Pin Lock

PH Insulation Pin lock is installed to doors with thickness of 100 to 120 mm.

PH Insulation pin lock for sliding doors with automatic drive

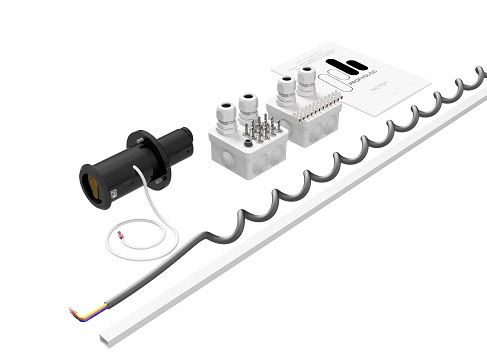

Special lock for sliding refrigeration doors with automatic drive designed in the PH Insulation R&D Center


Request a Quote



Name:
Company:
Telephone:*
City:
Comment:
